China Custom Precision Motor Shaft Manufacturer
Custom motor shafts for electric motors and industrial drives, designed for stable rotation, controlled tolerance, and long-term supply.
-
Custom shafts based on drawings or samples
Engineering review within 24 hours
-
In-house machining and heat treatment
Full process control for batch consistency
-
Small batch trial to stable mass production
Flexible MOQ for new project validation
-
Focus on industrial motor applications
Electric motors, pumps, automation equipment
What Is a Motor Shaft?
A motor shaft is the rotating component of an electric motor that transmits torque from the motor to connected equipment such as gearboxes, pumps, or drive systems.
Unlike general transmission shafts, motor shafts require tighter control in concentricity, straightness, and surface finish to ensure stable rotation and long service life.

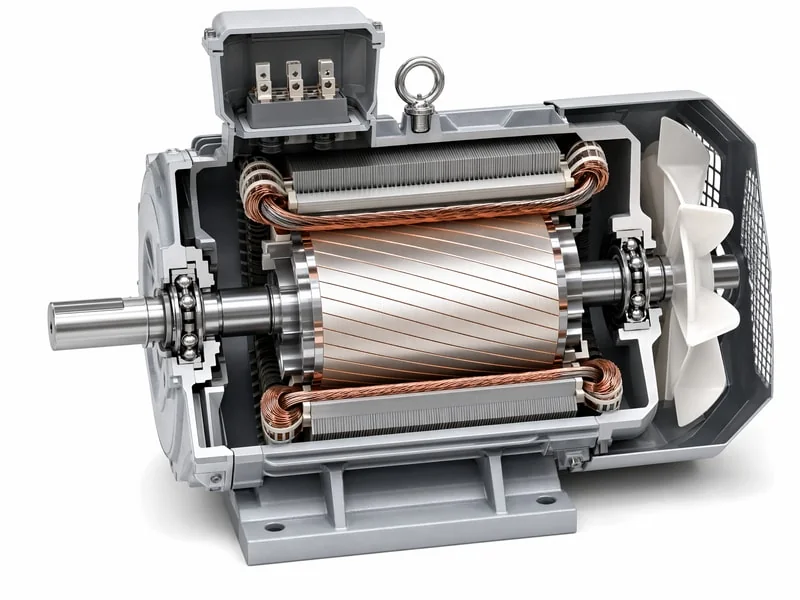

Motor shaft position within electric motor assembly
Why Motor Shaft Quality Matters
Compared with general drive shafts, motor shafts typically operate at higher rotational speeds and require better dimensional consistency. Small deviations in straightness, concentricity, or heat treatment can lead to vibration, premature bearing failure, or noise issues during operation.
Rotational Stability
Affects vibration level and smooth motor operation
Bearing Life
Poor shaft quality leads to premature bearing failure
Noise Control
Dimensional errors cause unwanted operational noise
Assembly Accuracy
Ensures proper fit with motor components
For this reason, motor shaft manufacturing requires not only machining capability, but also stable process control and experience with motor-related applications.
Types of Motor Shafts We Manufacture
We manufacture custom motor shafts based on customer drawings, samples, or technical requirements.
The following are typical motor shaft types we regularly produce for industrial and equipment motor applications.

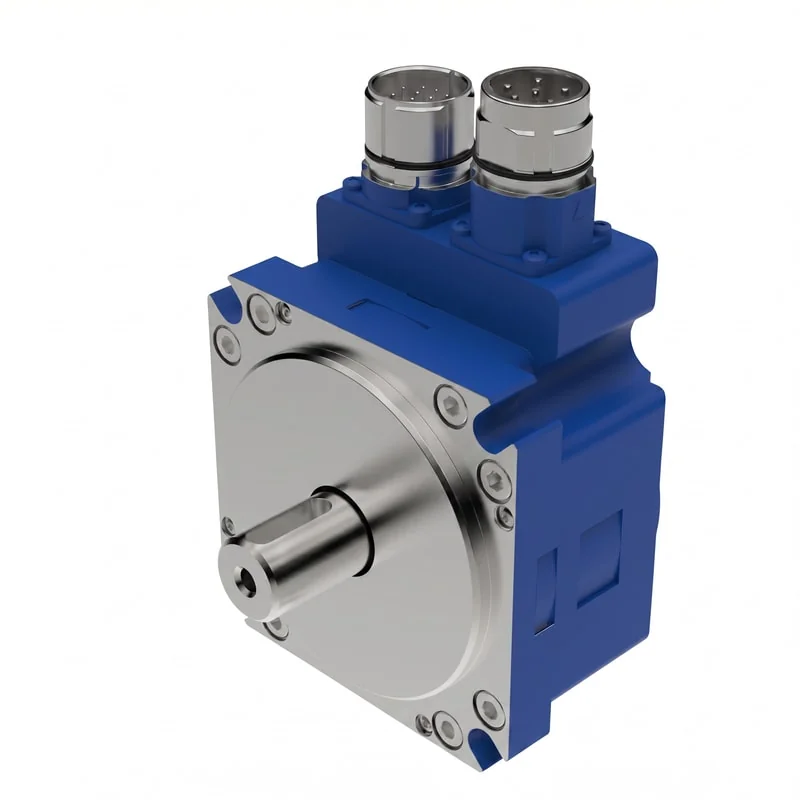

Solid Motor Shafts
Commonly used in standard electric motors and drive systems where stable torque transmission and dimensional consistency are required.

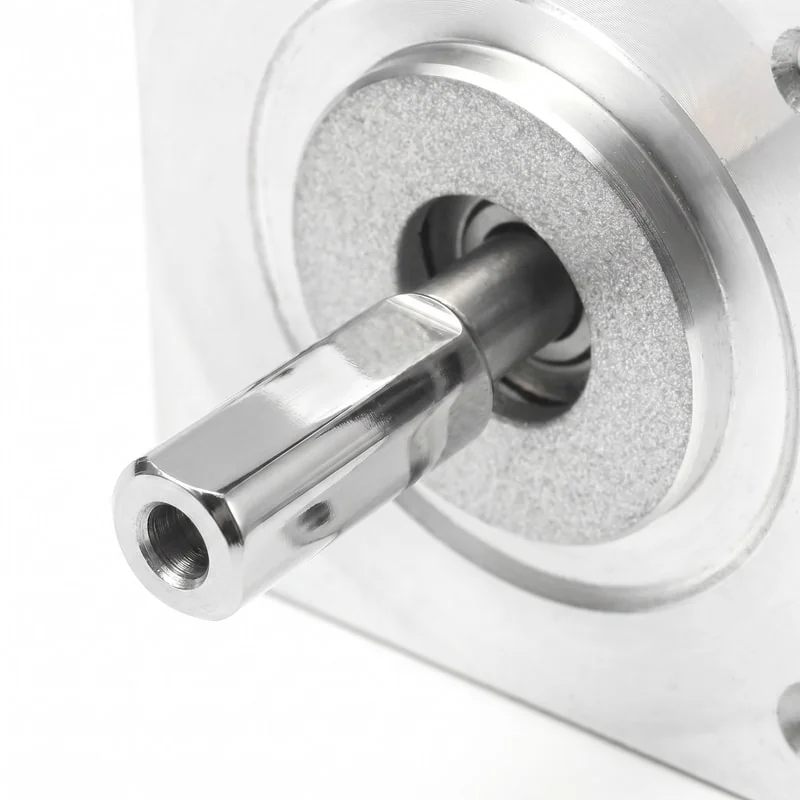

Stepped Motor Shafts
Designed for motors requiring precise assembly with bearings, rotors, or couplings. Tight control on concentricity between steps.

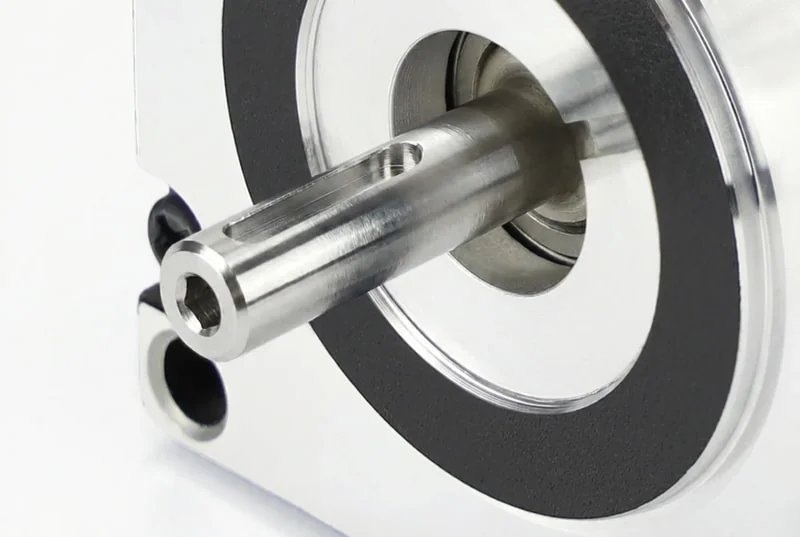

Keyed Motor Shafts
Widely used in motors where torque needs to be transmitted through mechanical key connections. Standard or custom keyway profiles.

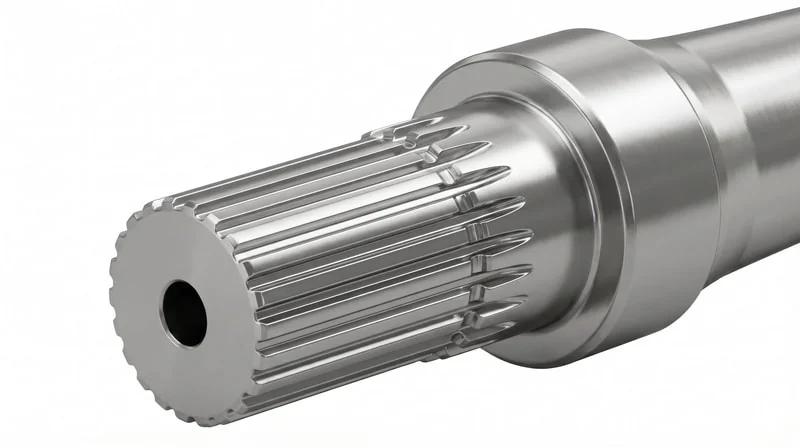

Splined Motor Shafts
Used in applications requiring higher torque transmission or axial positioning accuracy. Internal or external spline profiles available.
Solid Motor Shafts
Standard electric motors and drive systems.
Stepped Motor Shafts
Precision assembly with bearings and rotors.
Keyed Motor Shafts
Mechanical key connections for torque.
Splined Motor Shafts
Higher torque and axial positioning.
Our Manufacturing Focus
Our motor shafts are mainly designed for industrial and equipment motor applications, focusing on stable rotation and long-term reliability.
Ultra-high-speed, aerospace-grade, or racing motor shafts are not our target products.
Engineering & Manufacturing Capability for Motor Shafts
Motor shafts are critical rotating components where machining accuracy, heat treatment consistency, and process stability directly affect motor performance. Our manufacturing process is designed to control these factors and ensure stable quality from samples to batch production.

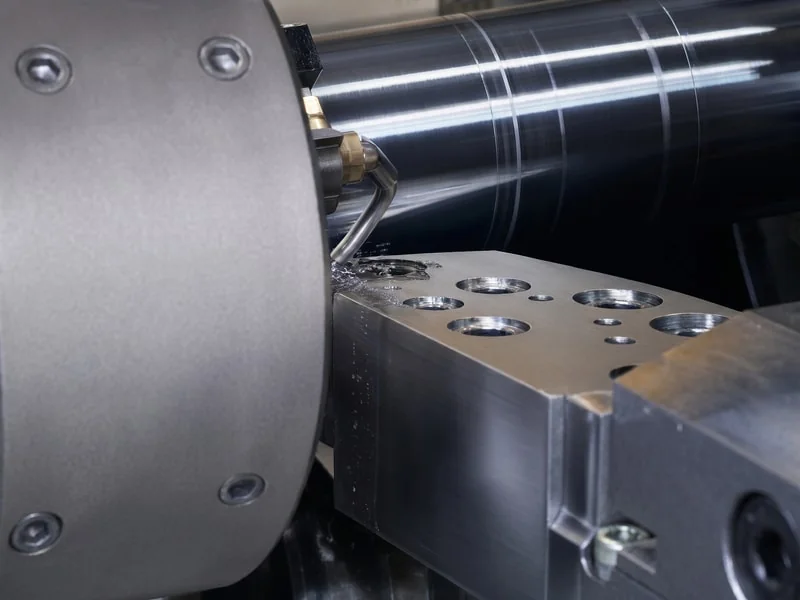

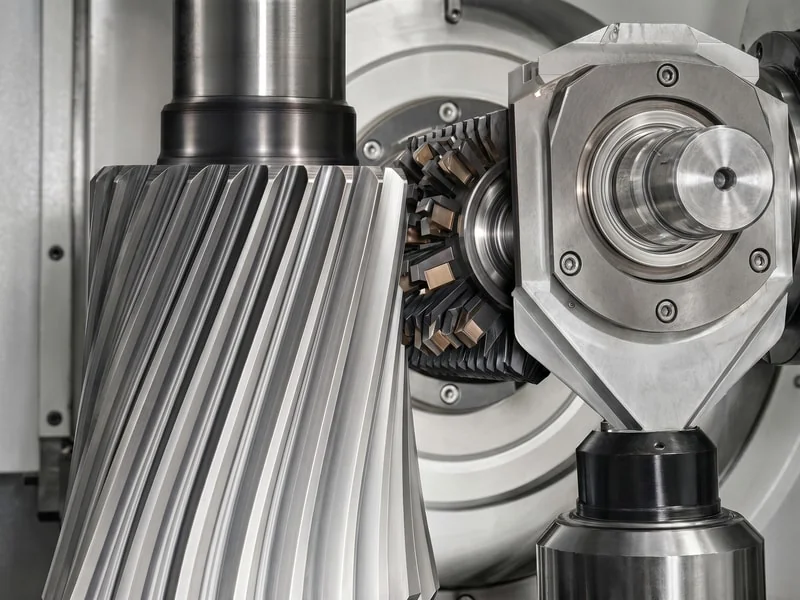

Machining Capability
Motor shafts are machined based on customer drawings with controlled tolerances to ensure proper assembly with bearings, rotors, and couplings.
Key focus areas:
- Turning and milling for stepped shaft structures
- Controlled bearing seat dimensions
- Keyway and spline machining based on drawing requirements
In-house Heat Treatment
Heat treatment plays a critical role in motor shaft durability and batch consistency. By performing heat treatment in-house, we are able to maintain stable hardness levels and reduce variation between batches.

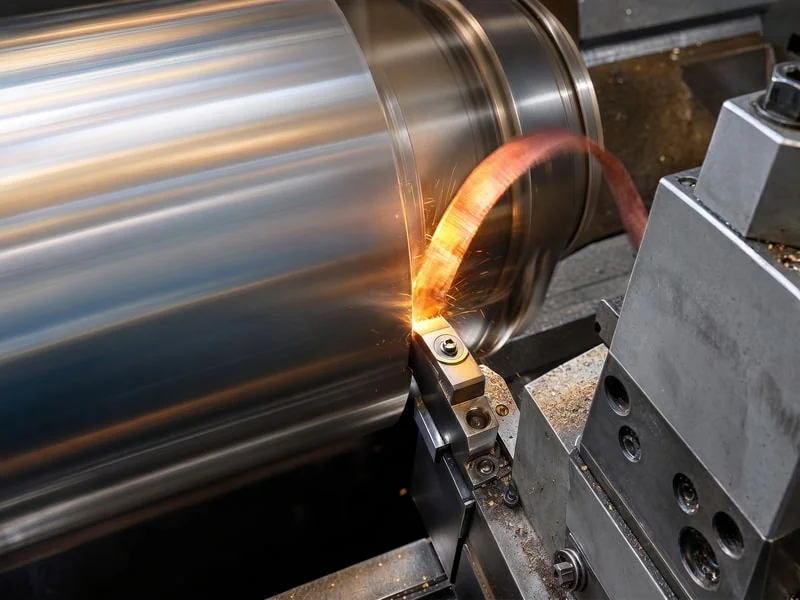

Concentricity & Straightness Control
For rotating motor shafts, concentricity and straightness are key factors affecting vibration and bearing life.
Our control approach includes:
- Process control during machining
- Dimensional inspection before and after heat treatment
- Alignment checks during final inspection
Inspection & Process Control
To ensure consistent quality from samples to batch production, inspection is integrated into each key manufacturing stage.
Inspection records are maintained for repeat orders to support long-term supply.
Inside Our Motor Shaft Factory
See how precision motor shafts are manufactured — from CNC machining to heat treatment and final inspection before shipment.

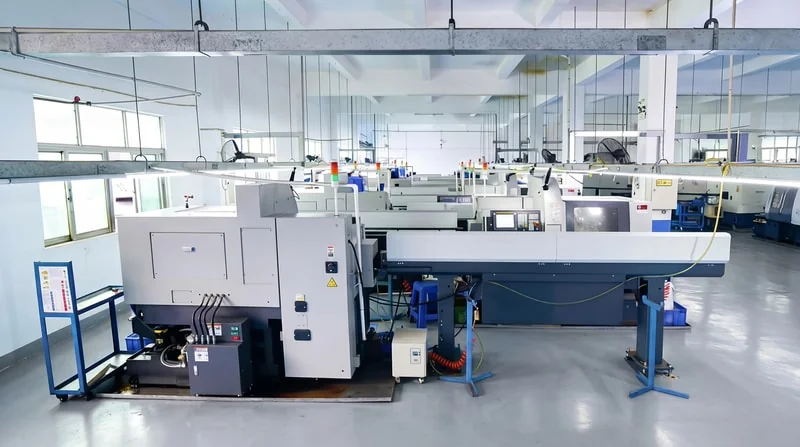

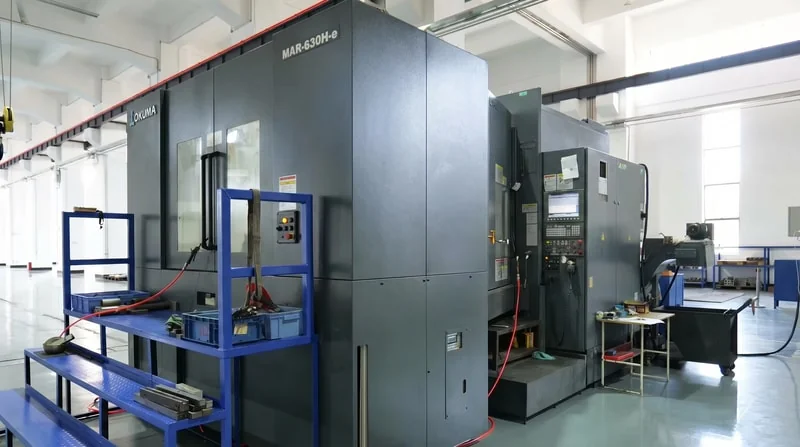

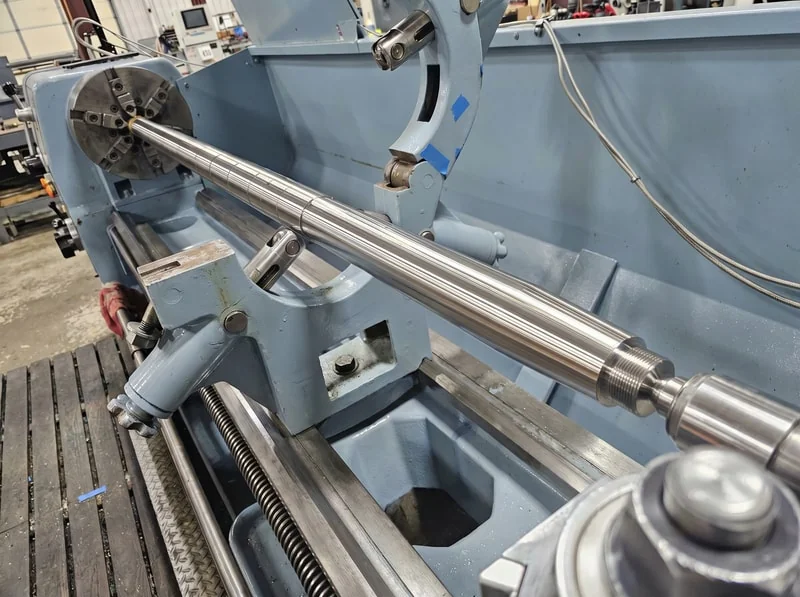

Precision Machining Center

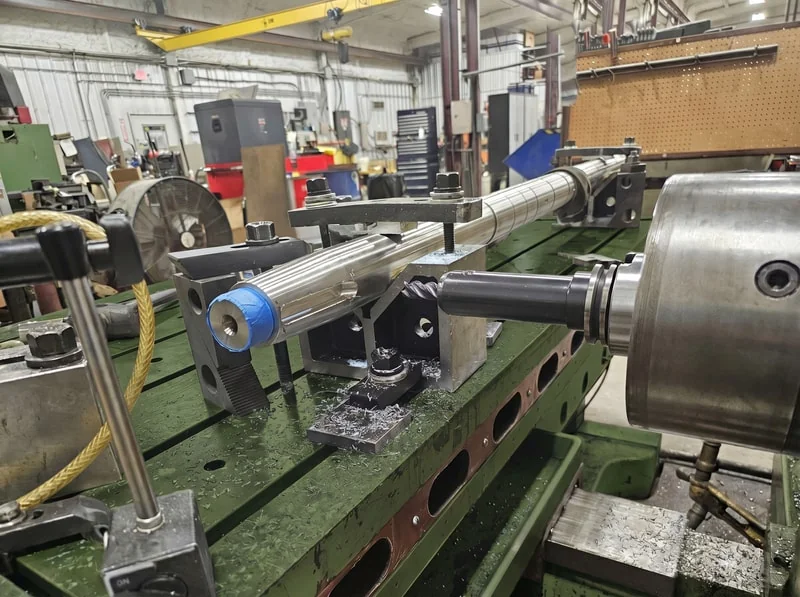

CNC Lathes & Grinding Equipment
Applications & Use Scenarios for Motor Shafts
Our motor shafts are widely used in industrial and equipment motor applications where stable rotation, controlled tolerance, and long-term reliability are required. Below are typical use scenarios where motor shaft performance plays a critical role.

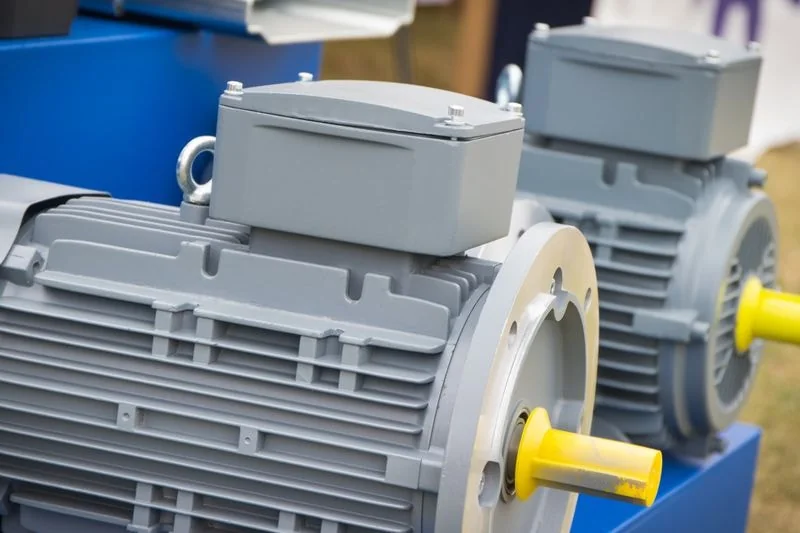

Electric Motors for Industrial Equipment
Motor shafts used in industrial equipment motors require stable rotation and reliable assembly with bearings and rotors for continuous operation.
- Stepped shaft design
- Bearing seats with controlled tolerance
- Keyway or threaded ends

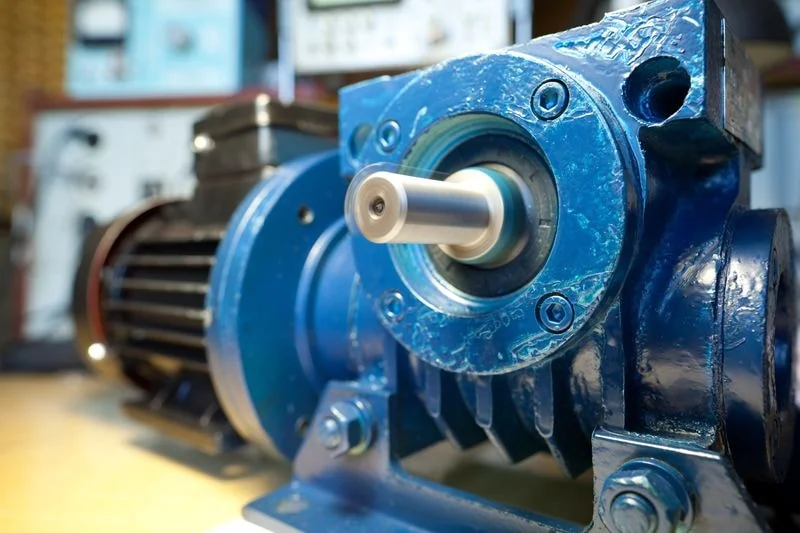

Gear Motors & Drive Units
In gear motor systems, motor shafts transmit torque to gearboxes and must maintain dimensional consistency to ensure smooth power transmission.
- Keyed or splined connections
- Controlled concentricity to reduce vibration
- Suitable for medium-speed applications

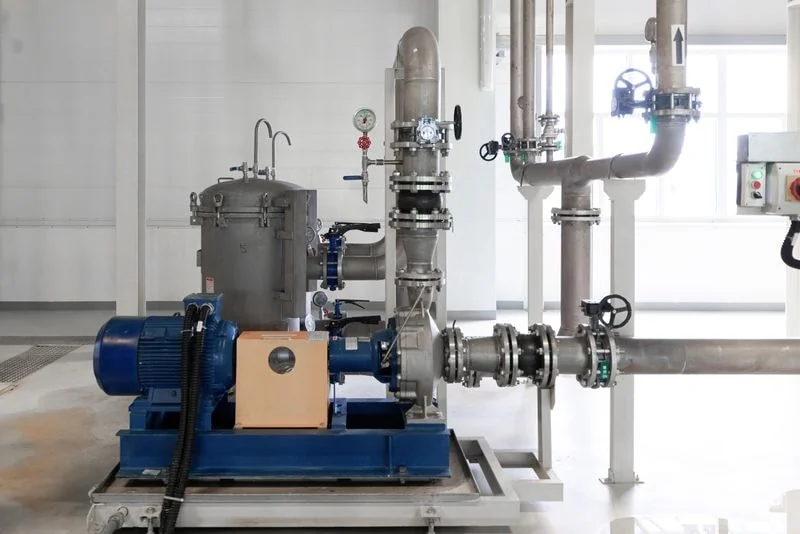

Pumps and Compressors
Motor shafts used in pumps and compressors often operate under continuous load, where shaft straightness and surface quality affect seal and bearing life.
- Stable shaft straightness
- Surface finish suitable for seal areas
- Consistent quality for long-term operation
Agricultural & Construction Equipment
These motors often work in harsh environments, requiring motor shafts with reliable structure and stable performance rather than extreme precision.
- Robust shaft structure
- Focus on durability and repeatability
- Suitable for long-term supply programs

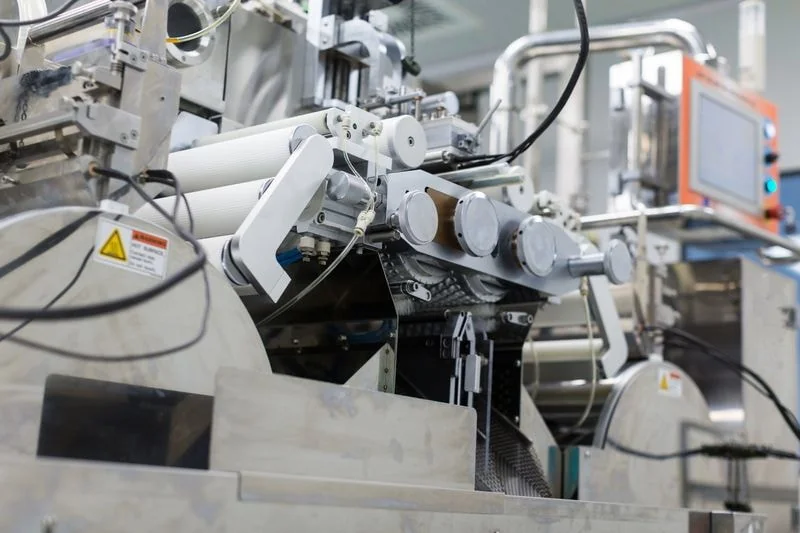

Customized Equipment & OEM Systems
For customized machinery, motor shafts are often designed based on specific installation space, load, and operating conditions.
- Fully customized dimensions
- Produced based on drawings or samples
- Small batch trial followed by batch production
Your Application Not Listed?
The applications above represent our common experience, not limitations. If your project involves a different motor type or working condition, we're happy to discuss whether we can support it.
30+
Industries Served
100%
Custom Projects
Customization Process for Motor Shafts
Motor shaft projects often involve specific installation, load, and performance requirements. Our customization process is designed to ensure clear technical communication and stable results from sample to batch production.
30-35
Days for Sample
100%
Custom Support
3-5
Year Programs
Drawing or Sample Review
We review customer drawings, samples, or basic technical requirements to understand the motor shaft structure and application.
"We first understand your project before quoting."
Engineering Confirmation
Our engineering team confirms critical dimensions, material selection, and manufacturing feasibility before sample production.
"We confirm risks before production — not after."
Sample Production & Validation
Samples are produced according to confirmed specifications for assembly and functional testing before moving to batch production.
"We respect your testing process."
Batch Production & Long-term Supply
After sample approval, we support batch production with stable process control to ensure consistent quality for repeat and long-term orders.
"We're ready for 3–5 year supply programs."
Quality Control & Long-Term Supply Assurance
Motor shafts are critical components where batch consistency and long-term reliability are more important than one-time inspection results. Our quality control system is designed to ensure stable performance from sample approval to long-term batch supply.
Incoming Material Inspection
Raw materials are inspected before production to ensure material grade and basic mechanical properties meet project requirements.

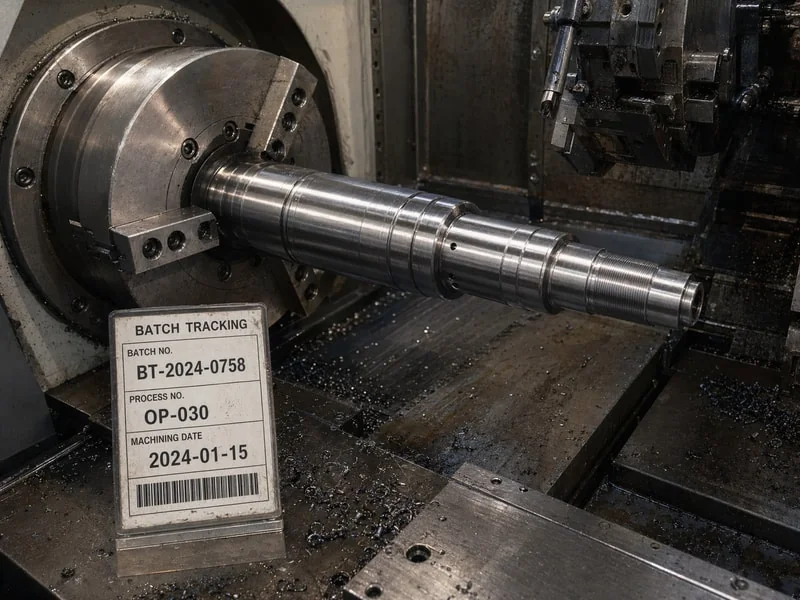

In-Process Quality Control
Key dimensions and machining features are checked during production to prevent deviation accumulation before heat treatment.
Heat Treatment & Hardness
Hardness is checked after heat treatment to ensure consistency with technical requirements and reduce variation between batches.

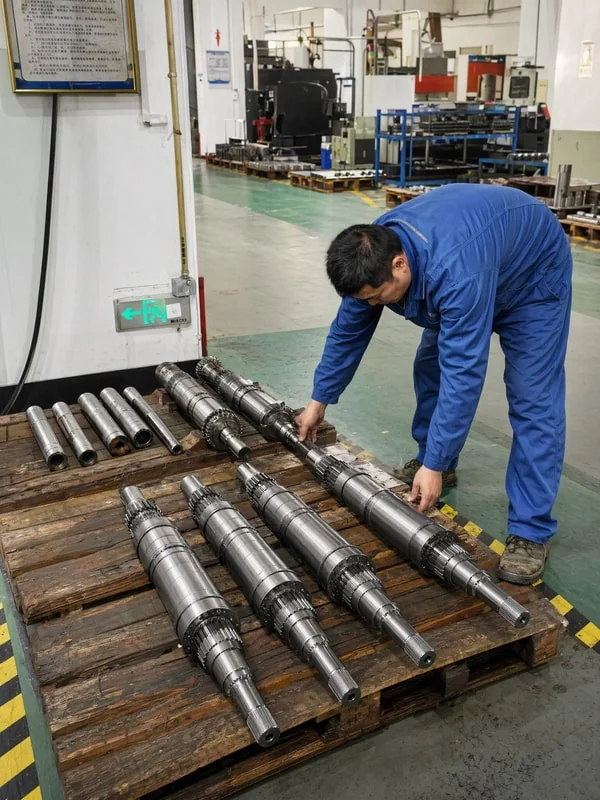

Final Inspection
Final inspection focuses on dimensions, visual condition, and assembly-related features to ensure each motor shaft meets specifications.
Batch Consistency Control
For repeat orders, inspection records and process parameters are maintained to support consistent quality across batches.

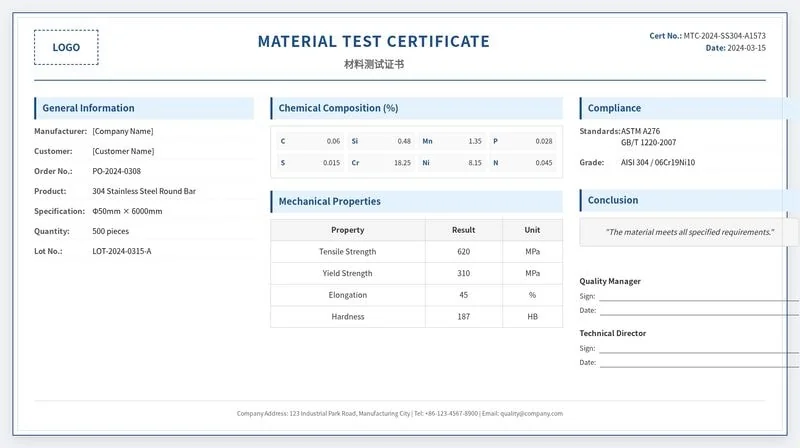

Quality Documents Available
We provide inspection reports, hardness test records, and material certificates to support customer verification and audits.
Motor Shaft Questions OEM Buyers Actually Ask
Real questions from motor manufacturers and procurement teams — covering quotation, customization, quality control, and long-term supply.
Send Your Drawing or Application Details
Our engineers will review your motor shaft requirements and provide technical feedback — no obligation.
Prefer Direct Discussion?
If you already have motor shaft drawings or technical details and prefer a direct engineering discussion, contact us directly.
Start the Conversation
You don't need a finalized drawing — share what you have, our engineers will help clarify the rest.
